Description
Add MSX-BIOS and MSX-BASIC support functions for the MSX YM2413 Music Module
What is it?
The on-board ROM includes the MSX-MUSIC basic extensions enabling the ability to write/run basic program thru its implementation of Music Macro Language (requires the MSX-Memory board with MSX-BASIC flashed).
Key features
- Onboard ROM, with MSX-MUSIC BASIC and BIOS extensions implemented
Key difference with Yellow MSX RGB
| Description | Yellow MSX Version | Green Stegosaur Version |
|---|---|---|
| MSX Support | YM2413 & MSX-MUSIC ROM on single board | Separate modules for YM2413 and MSX-MUSIC ROM |
| ROM re-flashing | supported | not supported |
| PCB Height | 8.0 cm | 5.5 cm |
| Colour | Yellow | Green |
What’s included?

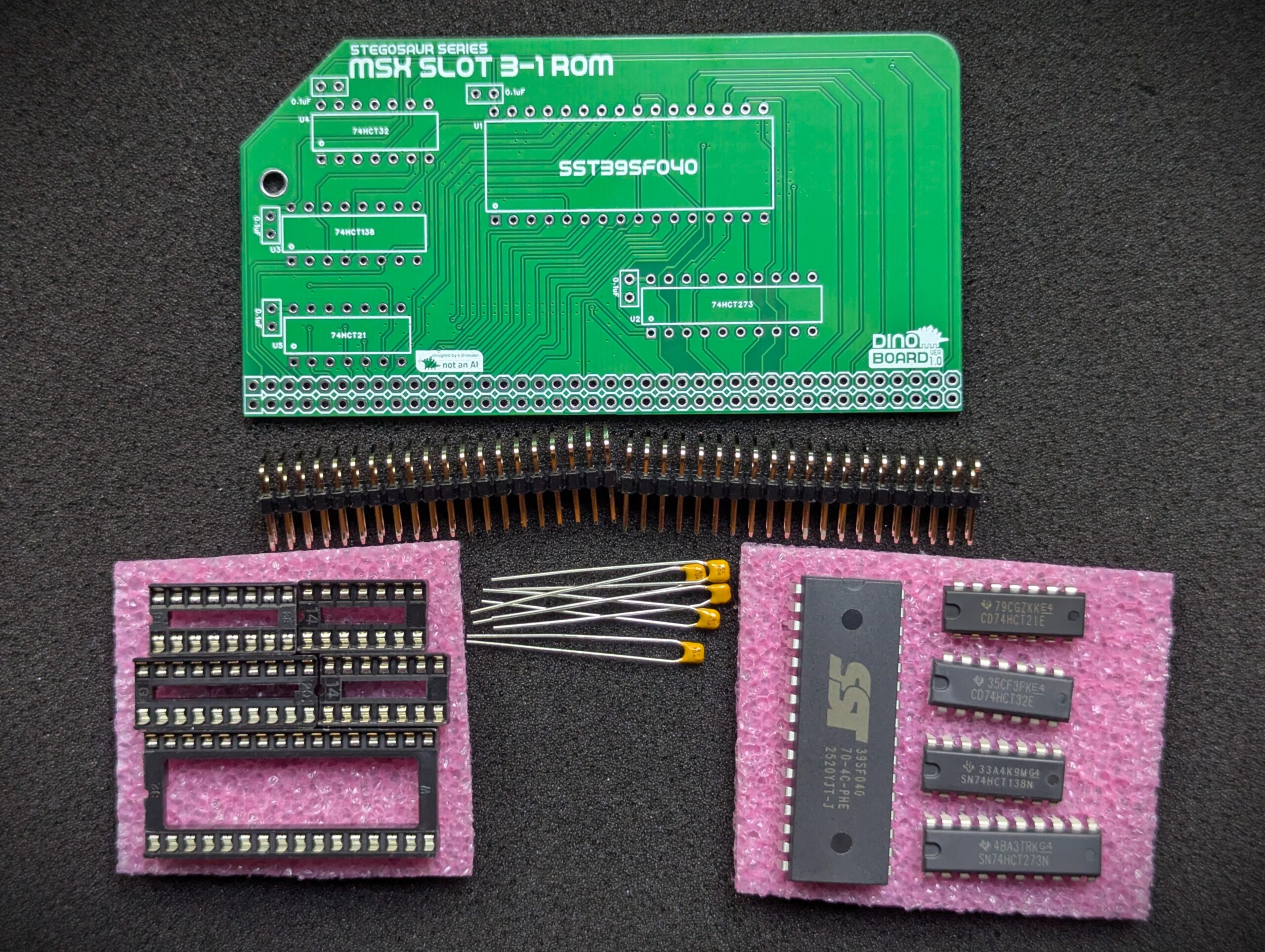

The full kits includes everything you need (PCB, capacitors, IC sockets, connectors, and the ICs).
The SST39SF040 ROM is supplied flashed with MSX-MUSIC extensions for MSX BASIC.
What else do I need?
This module is designed to operate within a MSX configured RC2014/RCBus bootable system only. It is not compatible with RomWBW.
You also must have the Stegosaur MSX YM2413 Music Module.
The onboard MSX-MUSIC basic extensions, requires your main Memory board have a MSX-BIOS/MSX-BASIC version flashed.
Product Details
For full product description, construction notes and other help – please see the main guide page at: https://www.dinoboards.com.au/stegosaur/music-rom/
